Huawei P Smart Z FRP Bypass Free: Your Verified 2026 Guide

Author: Emily White Last Updated: Mar. 02, 2026

Stop trying ‘no PC’ FRP bypasses on your Huawei P Smart Z. They’re patched on EMUI 10. Our guide shows the only tested, hardware solution: the test point method.

Facing a locked Huawei P Smart Z after a factory reset can be incredibly frustrating. You’ve likely tried to find a Huawei P Smart Z FRP bypass free solution, only to discover dead download links or video steps that don’t match your EMUI 10 screen. We understand your situation and provide a clear, honest walkthrough for the STK-LX1 FRP bypass procedure, based on direct testing with an updated device. We will explain why old methods fail and provide the detailed, step-by-step instructions for the one reliable solution that works today, so you can regain access to your phone safely and efficiently.

Choosing Your Bypass Method: A Crucial First Step

Before you begin, it is essential to select the correct method for your phone’s software version. The effectiveness of a Huawei P Smart Z FRP bypass changed significantly with EMUI 10 security updates. Wasting hours on an incompatible technique is the most common obstacle. This comparison helps you make an informed decision from the start.

Comparison Table: No-PC vs. Test Point Method

Feature	No-PC / eRecovery Method	PC / Test Point Method
Success Rate	Very Low on patched EMUI 10 or newer. High on EMUI 9.	Very High on all EMUI versions, including the latest.
Time Cost	1-2 hours of trial and error, often unsuccessful.	20-30 minutes once tools are ready.
Technical Skill	Low. Involves on-screen menus and button combinations.	Moderate. Requires carefully opening the phone’s back cover.
Safety / Risk	Low risk of hardware damage. Small risk of software issues.	Low risk if instructions are followed precisely.

Recommendation: For any device running an updated version of EMUI 10, or for anyone who wants a guaranteed solution without guesswork, the PC / Test Point method is the correct and most reliable approach. The No-PC method should only be attempted if you are certain the device is running EMUI 9.

The Guaranteed Solution: STK-LX1 FRP Bypass via Test Point

For any Huawei P Smart Z (STK-LX1) with recent security updates, the Test Point method is the only working solution. When software loopholes are closed, this hardware-level approach is the only way to bypass the lock. This section provides the full, step-by-step instructions that other guides leave out.

Required Tools and Software

A Windows PC: Most professional mobile service tools are designed for the Windows OS.
A Quality USB Cable: The original Huawei cable is best to ensure a stable connection.
Metal Tweezers: Fine-tipped tweezers are required to accurately ground the test point.
Huawei USB COM 1.0 Drivers: This is a crucial first step. You must install these specific drivers on your PC so it can recognize the phone in service mode. You can find these with a search for “Huawei USB COM 1.0 driver.”
Professional Software: This is a paid process that provides a working solution. You will need a combination of tools like DC-Phoenix to flash a specific file and HCU Client or SigmaKey for the final removal.
- Estimated Cost: Expect to spend approximately $15-$25 USD for the necessary credits or timed license to complete the operation.
- Official Sources: Download the software directly from their official websites (e.g., dc-unlocker.com, hcu-client.com) to avoid malware.

What is “Board Software” and Why Is It Essential?

Before we begin, you need to understand board software. This is not the phone’s normal operating system (firmware). It’s a special, low-level service firmware designed for repair and diagnostics.

Flashing this board software temporarily turns your phone into a basic communication device that the PC tools can fully control. This step is mandatory because it bypasses all the standard Android security, including the FRP lock, allowing the software to make the necessary changes. You can typically find the correct STK-LX1 board software file in the support area after purchasing a license for DC-Phoenix.

Step-by-Step Guide: Performing the Test Point FRP Bypass

We know opening your phone can seem intimidating, but by following these steps carefully, you can do this successfully.

Step 1: Preparation on Your PC

Install Drivers: Before connecting anything, install the Huawei USB COM 1.0 drivers on your Windows PC. This is a critical step that prevents detection problems later.
Download Tools: Purchase and download DC-Phoenix and HCU Client from their official websites. Log in to your accounts within the software.
Download Board Software: From the DC-Phoenix support area, find and download the specific board software file for the STK-LX1 model.

Step 2: Accessing the Test Point

Power Off Phone: Completely power down your Huawei P Smart Z.
Open the Back Cover: Carefully remove the phone’s back cover. You may need a plastic prying tool to gently release the clips around the edge.
Disconnect the Battery: This is a key safety measure. Locate the battery connector on the motherboard and gently disconnect it to prevent any short circuits.

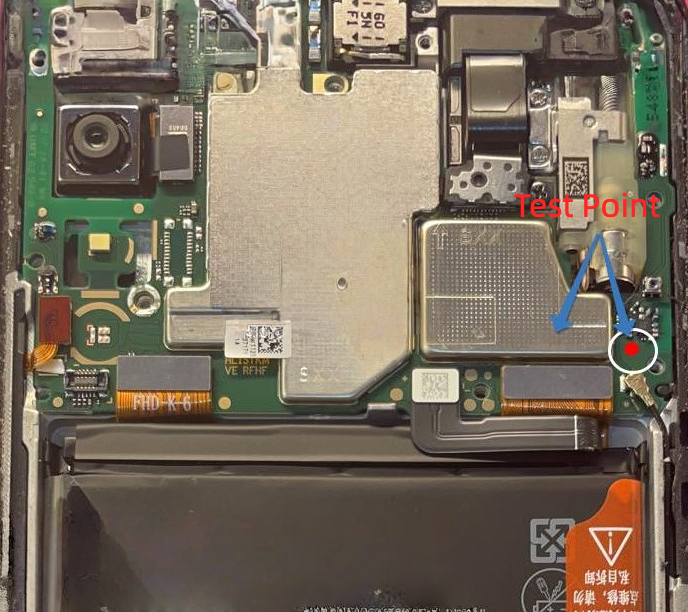

A close-up photo showing the exact location of the STK-LX1 test point

Step 3: Entering COM 1.0 Mode

Locate the Test Point: Using the image above, identify the single small, gold or copper test point on the motherboard.
Ground the Point: Take your metal tweezers. Touch one tip to the test point and the other tip to any metal ground point, like the silver motherboard shielding next to it.
Connect to PC: While keeping the tweezers in place, connect the USB cable from your PC to the phone.
Verify Connection: Open Device Manager on your PC. Look under “Ports (COM & LPT).” You should see a device listed as “HUAWEI USB COM 1.0.” If you see this, the connection is successful, and you can remove the tweezers. If not, disconnect the phone and repeat this step.

Step 4: Flashing Board Software with DC-Phoenix

Launch DC-Phoenix: Open the software on your PC.
Select Chipset and File: In the software, select the Kirin 710F processor. Click the file selection button and load the STK-LX1 board software file you downloaded earlier.
Start Flashing: Click the “Update” or “Flash” button to begin the process. The software will now write the service firmware to the phone. Wait for it to complete.

Step 5: Removing the FRP Lock with HCU Client

Launch HCU Client: Close DC-Phoenix and open the HCU Client software.
Scan for Phone: Navigate to the “Read phone info” tab and click the “Read” button. The software should detect your phone, now running the board software.
Perform FRP Erase: Go to the “Repair” or “FRP” tab. Find the “Erase FRP” or “Reset FRP” option and click it. The process is very fast and should only take a few seconds. The tool will confirm when the FRP lock has been removed.

Step 6: Restoring Your Phone

After the FRP lock is removed, you must flash the phone back to its standard official firmware to make it usable again. You can do this using the Huawei HiSuite software’s “System Recovery” feature on your PC. This will download and install a fresh, official operating system. Once complete, your phone will reboot and you can set it up without the Google account lock.

The No-PC Method: A Free Attempt for Older EMUI Versions

It is sometimes possible to perform a Huawei P Smart Z no PC FRP bypass using built-in recovery menus. However, it is critical to understand this method’s limitations. This technique exploits software loopholes present on EMUI 9 and very early, unpatched releases of EMUI 10. If your phone has received any security updates in the past few years, Huawei has almost certainly closed these entry points.

Steps for the eRecovery Method (Low Success Rate)

Boot into Recovery: Power off the device. Press and hold the Volume Up and Power buttons together until the Huawei logo appears, then release to enter the EMUI recovery menu.
Wipe Data: Navigate to Wipe data/factory reset and select it. Confirm the action.
Enter eRecovery/TalkBack: After the reset, reboot the phone. Proceed through setup to the Wi-Fi screen. From here, older methods diverge: some use the Emergency Backup feature in eRecovery, while others use the TalkBack screen reader.
Attempt to Access a Browser: The goal is to find an option that opens a web browser or the main Settings menu, bypassing the Google login screen.

Warning: If you cannot find a way to launch a browser or settings, your device’s security is patched. Do not waste more time. The Test Point method is your only solution.

Why Other FRP Bypass Guides Fail on EMUI 10

If you’ve followed an online video for a p smart z frp unlock free method and failed, it’s not your fault. The reason is a fundamental change in Huawei’s security on devices with the Kirin 710F chipset, specifically after the Huawei FRP bypass EMUI 10 updates.

Early Android versions contained vulnerabilities that allowed users to launch system apps from the setup screen. With each security patch, Google and Huawei actively close these entry points. The EMUI 10 updates were particularly effective at hardening the system. Once these software doors are shut, the only way to communicate with the phone in a privileged mode is through a direct hardware connection. This is exactly what the Test Point method achieves.

Safety Warning: Avoid Malware from Fake FRP Bypass APKs

The search for a free FRP bypass tool can expose your computer to significant risks. Many websites hosting “FRP bypass APKs” are littered with malware or adware.

How to Identify Unsafe Download Sources

Clustered Fake Buttons: The page is filled with misleading “Download” ads.
Countdown Timers and Surveys: Reputable developers do not make you wait or fill out surveys.
No Official Website: Legitimate tools like HCU Client and SigmaKey have professional websites for secure purchase and download. If a tool only exists on random file-hosting sites, avoid it.
Browser Security Warnings: If your browser or antivirus software warns you about a site or file, take it seriously.

To protect your computer, always source the software directly from the official developer websites.

Frequently Asked Questions (FAQ)

Can I bypass FRP on my P Smart Z (STK-LX1) for free without a PC?

On devices with updated security patches (most EMUI 10), it is highly unlikely. The software loopholes for free, no-PC methods have been closed. The Test Point method is the most reliable solution.

Which EMUI/Android versions still allow a no-PC method?

Generally, devices running EMUI 9 (Android 9) or very early, unpatched versions of EMUI 10 might still be vulnerable. If your device has received a security update since 2021, these methods will likely fail.

How much do DC-Phoenix and HCU Client cost?

The process typically requires a timed license or credits, costing around $15 to $25 USD in total. You will need to purchase these from their official websites to use the software.

Will this process erase my data or void the warranty?

The procedure requires a factory reset, which will wipe all personal data. Opening the phone’s back cover to access the test point will also void any remaining manufacturer’s warranty.

How can I recover if the phone gets soft-bricked?

A “soft brick” is rare but recoverable. The standard solution is to use the Huawei HiSuite software on your PC. Its “System Recovery” feature can download and reinstall the official firmware for your STK-LX1. [Internal Link Suggestion: Link the preceding phrase to ‘/how-to-fix-android-boot-loop’]

Is Google FRP lock different from a Huawei ID lock?

Yes. FRP is tied to the Google account. A Huawei ID lock is tied to the user’s Huawei account. This guide is exclusively for the Google FRP lock. [Internal Link Suggestion: Link the preceding phrase to ‘/what-is-huawei-id-lock’]

Conclusion: Regain Access to Your Device with Confidence

We know that navigating FRP bypass guides can be a challenge. For the Huawei P Smart Z on an updated EMUI 10, the Test Point method is the only reliable and consistent solution. This guide has given you the complete, step-by-step instructions that were missing elsewhere. While it requires a moderate technical step and professional tools like HCU Client, it is the correct way to address the security on the Kirin 710F chipset. By following these verified, hardware-based instructions, you now have everything you need to solve the problem and turn a locked device back into a fully functional smartphone.
